2 way 2 stage solenoid valve (02)
2 way 2 stage solenoid valve (02)
Model No : IN4110F
Technical Specification
| Type | 2 Way -2 stage solenoid valve(NC) |
| Port size | Flange Type |
| Period | Continuous |
| Insulation class | F |
| Working fluid pressure | 0.35 bar to 3.5 bar |
| Body material | Aluminium |
| Diaphragm | FPM (Fluoroelastomer) |
| Orifice | 2.5 mm / 25 mm |
| Operating voltage | 230V AC / 24V DC/ 12V DC |
| Wattage | 2 x 6.9 W (230V) & 2 x 6.25W (24V DC) & 2 x 6.8W (12V DC) |
| Fluid media | Petrol / Diesel |
| Ambient temp. | -40°C to + 65°C |
| Approvals | Atex, IECEx, PESO |

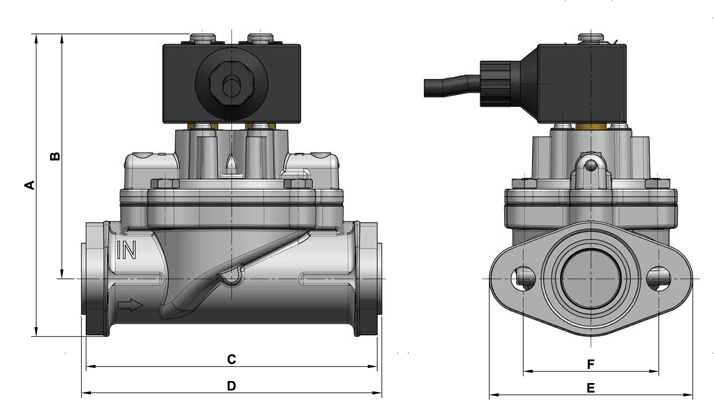

Dimension Table
( Dimensions are in mm )
| Model No | Port Size | A | B | C | D | E | F |
| IN 4110 F | Flange | 119 | 97 | 116 | 119.7 | 81.2 | 54 |
