2 way 2 stage solenoid valve Ad Blue Dispensers (01)
2 way 2 stage solenoid valve Ad Blue Dispensers (01)
Model No : IN4150AD
Technical Specification
| Type | 2 Way - 2 stage solenoid valve(NC) |
| Port size | ¾" BSP / NPT |
| Period | Continuous |
| Insulation class | F |
| Working fluid pressure | 0.35 bar to 3.5 bar |
| Body material | Aluminium Ad Blue Cotting |
| Diaphragm | FPM (Fluoroelastomer) |
| Orifice | 2.5 mm / 25 mm |
| Operating voltage | 220-240V AC & 24V DC & 12V DC |
| Wattage | 7.5 x 2 Watt (For 230V AC) , 6.5 x 2 Watt (For 24V DC) & 7 x 2 Watt (For 12V DC) |
| Fluid media | Petrol / Diesel / Ad Blue |
| Ambient temp. | -40°C to + 65°C |
| Approvals | Atex , CMRI , CCE , IECEx, Peso |

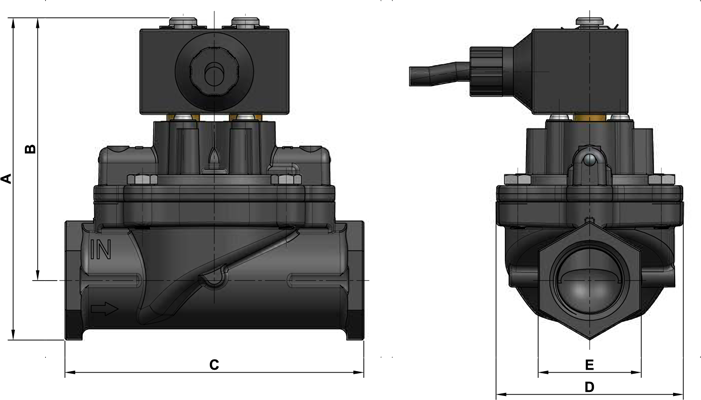

Dimension Table
( Dimensions are in mm )
| Model No | Port Size (Inch) | A | B | C | D | E |
| IN 4150 F-001 | 3/4"BSP | 117 | 95 | 110 | 69 | 38 |
| IN 4150 F-002 | 3/4"NPT | 117 | 95 | 110 | 69 | 38 |
