2 way single stage coil solenoid valve for LPG
2 way single stage coil solenoid valve for LPG
Model No : IN3350FS
| Type | 2 way - 2 stage solenoid valve (NC) |
| Port size | 3/4" BSP / NPT |
| Period | Continuous |
| Insulation class | F |
|
Working fluid pressure |
0 bar to 25 bar (AC) 0 bar to 17 bar (DC) |
| Body material | Brass |
| Diaphragm | PTFE |
| Orifice | 2.4 mm / 19 mm |
| Operating voltage | 230V AC & 24V DC & 12V DC. |
| Wattage | 9 W (230V AC ) & 7W (24V DC) & 5.2W (12V DC) |
| Fluid media | LPG Gas/ Liquid |
| Ambient temp. | -40°C to + 60°C |
| Approvals | ATEX, IECEx, PESO |

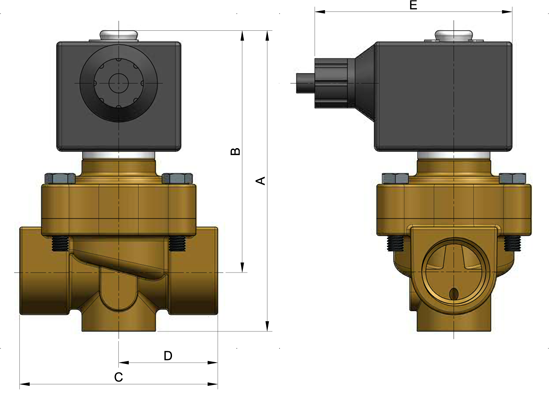

Dimensions Table
( Dimensions are in mm )
|
Model No
|
Port Size(Inch)
|
A
|
B
|
C
|
D
|
E
|
|
IN 3350 F S
|
3/4" BSP / NPT | 115 | 90 | 74 | 37 | 73.5 |
