The Infinity AT-SM-SWLSeries of Double Plane Swivels are designed and rigorously tested for applications where easy nozzle and hose handling is important for customer convenience. Double Plane Swivels are installed in between the nozzle and the hose to provide flexibility in the system to reduce customer strain, position the nozzle properly and reduce premature hose wear.
| Body | Aluminum Inlet |
| Adaptor | Zinc Outlet |
| Adaptor | Zinc Flat |
| Seal | Viton |
| O-Ring | Viton |
| Circlip | SS |
- ATEX listed for use in Petrol Diesel, Gasoline, and up to 25% ethanol blends. Specific listings available at www.infinitycontrols.com
- Allows for easy nozzle positioning in fill pipes-utilizing Double Plane Swivel.
- Reduces premature hose wear-utilizing Double Plane Swivels of rotation.
- Added protection vs. thermal and chemical degradation - Dual Seals.
- 50 psi (3.45 bar) maximum pressure.
| Weight | 3/4’’-(0.271 Kg) |
| Weight: | 1’’/M34-(0.554 Kg) |
| 60 | Per Case |

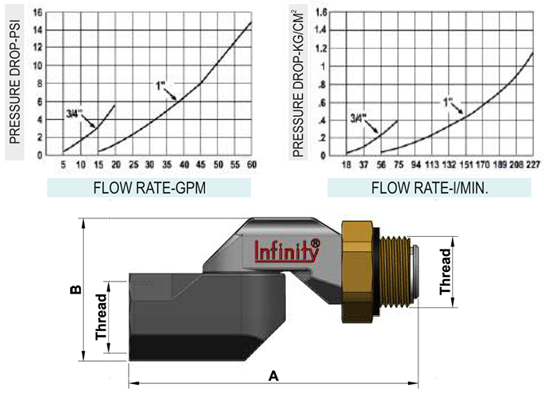

| Model No | Inlet / Out Let | Length -A | Depth - B |
| INFI-SW-001 | ¾”F x ¾”M (NPT),(BSP),(BSPT) | 4 1/4" | 2 1/8” |
| 19 mm x 19 mm | 107.6 mm | 53.0 mm | |
| INFI-SW-002 | 1” F x 1” M (NPT),(BSP),(BSPT) | 5 1/4" | 2 5/8” |
| 25 mm x 25 mm | 134.5 mm | 68.2 mm | |
| M34F x M34M | 5 1/4" | 2 5/8” | |
| 34 mm x 34 mm | 134.5 mm | 68.2 mm | |
|
|||
