Proportional Solenoid valve for Ad Blue (DEF)
Proportional Solenoid valve for Ad Blue (DEF)
Model No : IN4370F(DEF)
Technical Specification
| Type | 2 Way proportional solenoid valve (NC) |
| Port size | Seal fitting |
| Period | Continuous |
| Insulation class | F |
| Working fluid pressure | 0.35 bar to 3.5 bar |
| Body material | Aluminium Ad Blue (DEF) Cotting |
| Diaphragm | PTFE |
| Orifice | 20mm |
| Operating voltage | 230V AC & 24V DC & 12V DC. |
| Wattage | 9W (230V AC ) & 7W (24V DC) & 5.2W (12V DC) |
| Fluid media | Petrol / Diesel / Gasoline / Ad Blue (DEF) |
| Ambient temp. | -40°C to + 60°C |
| Approvals | ATEX, IECEx, PESO |

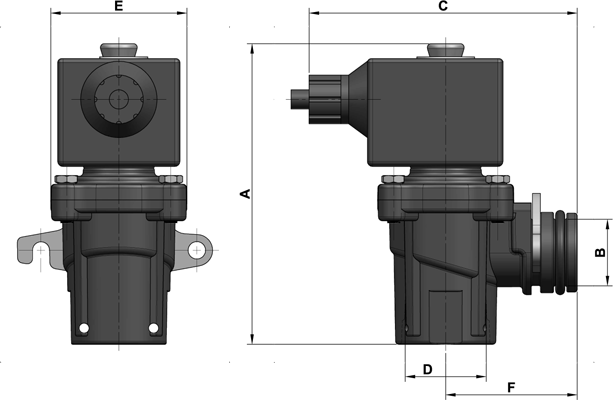

Dimensions Table
( Dimensions are in mm )
| Model No | Port Size | A | B | C | D | E | F |
| IN 4370 F (DEF) | Seal Fit | 114.7 | 25.3 | 102.2 | 31 | 51.8 | 50.4 |
Proportional Solenoid valve
