Solenoid Valve with flow controller & without vent tube
Solenoid Valve with flow controller & without vent tube
Model No : IN62802V
Technical Specification
| Type | 2 way solenoid valve(NC) |
| Port size | ø 12.5 mm (Hose fitting) |
| Period | Continuous |
| Insulation class | F |
| Maximum water head | 300 mm |
| Flow rate | 100ml / 4 sec. |
| Body material | Polyacetal / Noryl / Polycarbonate / Ultem |
| Diaphragm | Silicon |
| Orifice | 8 mm |
| Operating voltage | 230V AC, 24V DC, 12V DC |
| Wattage | 12 Watt |
| Fluid media | Water |
| Fluid temp. | 95°C max. |
| Approvals | CE |

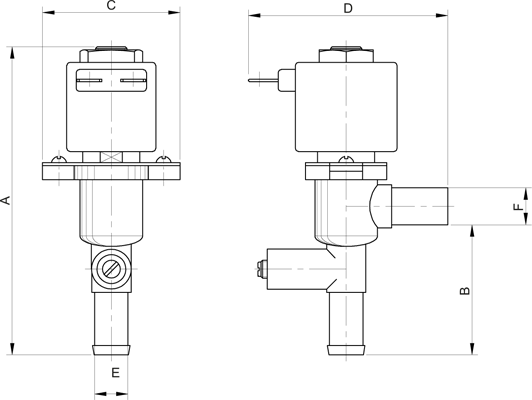

Dimension Table
( Dimensions are in mm )
| Model No | Port Size | A | B | C | D | E | F |
| IN 62802 V | Ø12.5 (Hose Fit) | 100 | 41.6 | 46.5 | 63.75 | 10.5 | 12.5 |
