2way -2 stage solenoid valve for fuel dispensers
2way -2 stage solenoid valve for fuel dispensers
Model No : IN4151U
Technical Specification
|
Type
|
2 Way - 2 stage solenoid valve(NC)
|
|
Port size
|
¾" & 1" BSP / NPT
|
|
Period
|
Continuous
|
|
Insulation class
|
F
|
|
Working fluid pressure
|
0.35 bar to 3.5 bar
|
|
Body material
|
Aluminium
|
|
Diaphragm
|
FPM (Fluoroelastomer)
|
|
Orifice
|
2.5 mm / 25 mm
|
|
Operating voltage
|
230V AC / 24V DC / 12V DC
|
|
Wattage
|
2. x 6.9W (230V) & 2 x 6.25W (24V DC) & 2 x 6.8W (12V DC) |
|
Fluid media
|
Petrol / Diesel
|
|
Ambient temp.
|
-40°C to + 65°C
|
|
Approvals
|
ATEX, IECEx, PESO
|

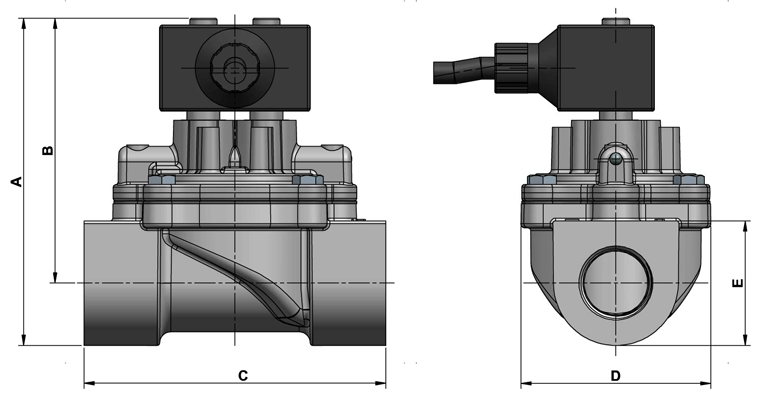

Dimensions Table
( Dimensions are in mm )
|
Model No
|
Port Size (Inch)
|
A
|
B
|
C
|
D
|
E
|
|
IN 4151 U
|
3/4"&1" BSP/NPT
|
119.8
|
97
|
110.2
|
69
|
45.5
|
