Proportional Solenoid valve

Technical Specification

Type	2 Way proportional solenoid valve (NC)
Port size	Seal fitting
Period	Continuous
Insulation class	F
Working fluid pressure	0.35 bar to 3.5 bar
Body material	Aluminium
Diaphragm	PTFE
Orifice	20mm
Operating voltage	230V AC & 24V DC & 12V DC
Wattage	9W (230V AC ) & 7W (24V DC) & 5.2W (12V DC)
Fluid media	Petrol / Diesel / Gasoline
Ambient temp.	-40°C to + 65°C
Approvals	ATEX, IECEx, PESO

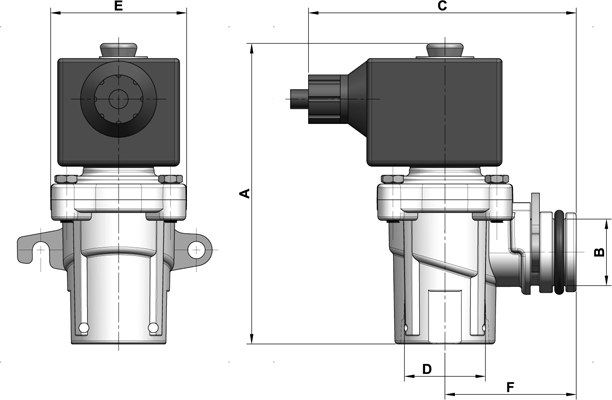

Dimension Table

                                                                                                                        ( Dimensions are in mm )

Model No	Port Size	A	B	C	D	E	F
IN 4370 F	Seal Fit	114.7	25.3	102.2	31	51.8	50.4
