2 Way 2 Stage Solenoid Valve DEF AD Blue (1)

2 Way 2 Stage Solenoid Valve DEF AD Blue (1)

Model No : IN 4110 F (DEF)

Technical Specification

Type 2 Way - 2 stage solenoid valve(NC)
Port size Flange Type
Period Continuous
Insulation class F
Working fluid pressure 0.35 bar to 3.5 bar
Body material Aluminium Ad Blue (DEF) Coating
Diaphragm FPM (Fluoroelastomer)
Orifice 2.5 mm / 25 mm
Operating voltage 230V AC / 24V DC / 12V DC
Wattage 2 x 6.9 W (230V) & 2 x 6.25W (24V DC) & 2 x 6.8W (12V DC)
Fluid media Petrol / Diesel / Ad Blue
Ambient temp. -40°C to + 65°C
Approvals ATEX, IECEx, PESO

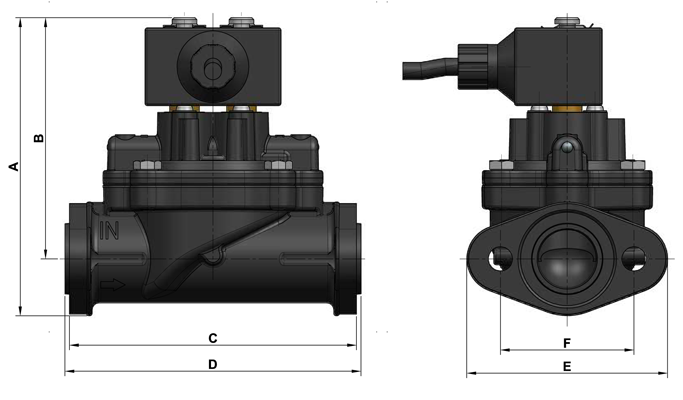

Dimensions Table

   ( Dimensions are in mm )

Model No
Port Size
A
B
C
D
E
F
IN 4110 F (DEF)
Flange
119
97
116
119.7
81.2
54
