Triple Solenoid Valve

Technical Specification

Type	4 Way solenoid valve(NC)
Port size	ø 12.5 mm (Hose fitting)
Period	Continuous
Insulation class	F
Maximum water head	300 mm
Flow rate	100ml / 4 sec.
Body material	Polyacetal / Noryl / Polycarbonate / Ultem
Diaphragm	Silicon
Orifice	8 mm
Operating voltage	230V AC, 24V DC, 12V DC
Wattage	12 Watt
Fluid media	Water
Fluid temp.	95°C max.
Approvals	CE

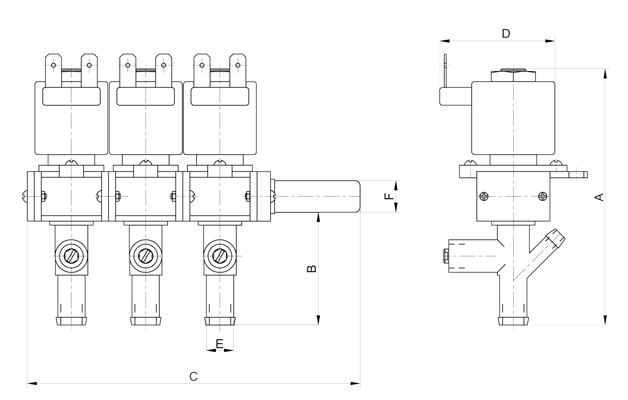

Dimension Table

( Dimensions are in mm )

Model No	Port Size	A	B	C	D	E	F
IN 62821 V	Ø12.5 (Hose Fit)	100	44	130	43	10.5	12.5
