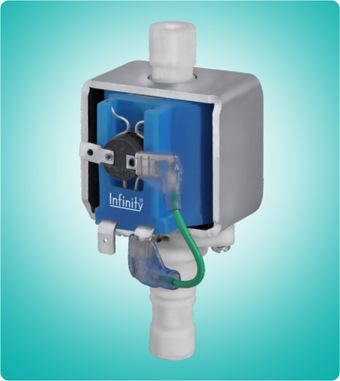

Solenoid Pump
Solenoid Pump
Model No : SM/PU-02
Technical Specification
| Type | 2 way (NC) |
| Port size | 1/8" BSP |
| Pressure | 3 bar (static) |
| Period | Continuous |
| Insulation class | F |
| Self priming height | 1 mtr. |
| Flow rate | 1.5 ltr / Min. |
| Body material | Nylon |
| Orifice | 4 mm |
| Operating voltage | 230V AC |
| Wattage | 34 Watt |
| Fluid media | Water |
| Fluid temp. | 95°C max. |
| Ambient temp. | ‹ 60°C |
| Approvals | CE |

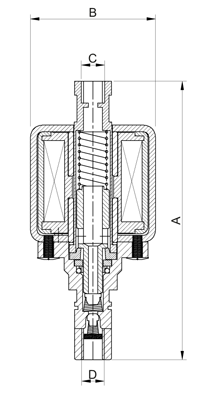

Dimension Table
| Model No | Port Size (Inch) | A | B | C | D |
| SM/PU-02 | 1/8"BSP | 119.2 | 53.5 | 1/8" | 1/8" |
