2 Way - 2 stage solenoid valve(NC) SS
2 Way - 2 stage solenoid valve(NC) SS
Model No : IN4150FSS
Technical Specification
| Type | 2 Way - 2 stage solenoid valve(NC) |
| Port size | ¾" & 1" BSP / NPT |
| Period | Continuous |
| Insulation class | F |
| Working fluid pressure | 0.35 bar to 3.5 bar |
| Body material | Stainless Steel 304 |
| Diaphragm | FPM (Fluoroelastomer) |
| Orifice | 2.5 mm / 25 mm |
| Operating voltage | 230V AC / 24V DC / 12V DC |
| Wattage | 2 x 6.9 W (230V) & 2 x 6.25 (24V DC) & 2 x 6.8W (12V DC) |
| Fluid media | Petrol / Diesel / Ad Blue |
| Ambient temp. | -40°C to + 65°C |
| Approvals | ATEX, IECEx, PESO |

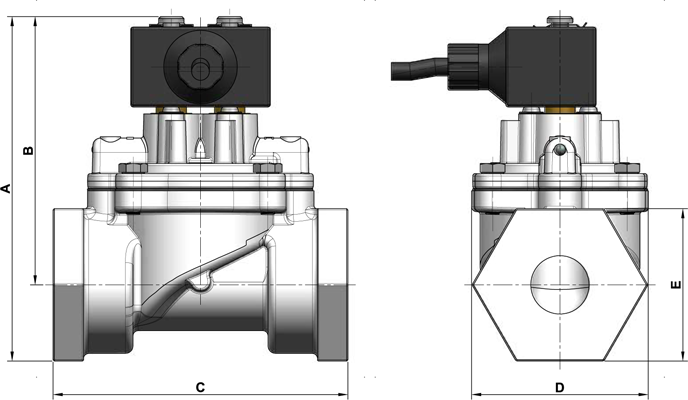

Dimensions Table
( Dimensions are in mm )
|
Model No
|
Port Size(Inch)
|
A
|
B
|
C
|
D
|
E
|
|
IN 4150 F SS
|
3/4"BSP/NPT
|
134
|
104
|
116.2
|
69
|
60
|
