Break aways 3/4" Standard Non Reconnectable & Reconnectable Break away

Model No : Model No.: IN 4650 B & IN 4650 C

Technical Specification

Type 2 way (NO)
Size 1" NPT / BSP
Body material Aluminium
O rings & Seals FPM (Fluoroelastomer)
Fluid media Petrol / Diesel
Approvals Atex

Features

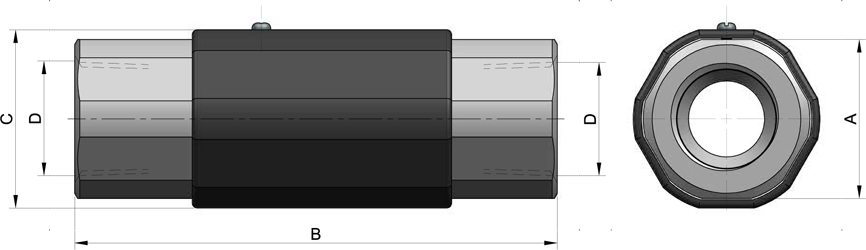

Model No Port Size (Inch) Type A B

C

D

(Inch)

 Weight Max. Separation
Pull Force
IN 4650 B 3/4" NPT / BSP Non Reconnectable 31.8 106.3 36.5 3/4" 0.4 lbs 350 LBS
IN 4650 C 3/4" NPT / BSP Reconnectable 41.5 108.9 47 3/4" 0.8 lbs 350 LBS
Download Catalogue
  • Features & Benefits
  • Specification

Features

  • Infinity IN 4650 B Non Reconnectable Break away has economical design with 1" connection for standard hose application. The double poppet seal both hoses upon separation.
  • Infinity IN4650 C Reconnectable Break away allows for an immediate return to service after a drive away with no repair kit required. This is made possible by a unique reconnectable design. The double poppets seal both hoses upon separation.
