2 Way 2 Stage Solenoid Valve 24V DC
2 Way 2 Stage Solenoid Valve 24V DC
Model No : IN4150FT(DEF)
Technical Specification
| Type | 2 Way - 2 stage solenoid valve(NC) |
| Port size | 1” BSP / BSPT / NPT |
| Period | Continuous |
| Insulation class | F |
| Working fluid pressure | 0.35 bar to 3.5 bar |
| Body material | Aluminium Ad Blue Coting |
| Diaphragm | FPM (Fluoroelastomer) |
| Orifice | 2.5 mm / 25 mm |
| Operating voltage | 230V AC / 24V DC / 12V DC |
| Wattage | 2 x 6.9 W (230V) & 2 x 6.25 (24V DC) & 2 x 6.8W (12V DC) |
| Fluid media | Petrol / Diesel / Ad Blue |
| Ambient temp. | -40°C to + 65°C |
| Approvals | ATEX, IECEx, PESO |

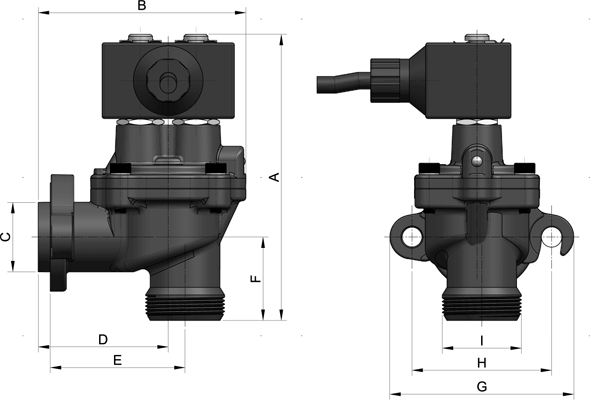

Dimensions Table
( Dimensions are in mm )
|
Model No
|
Port Size(Inch)
|
A
|
B
|
C
|
D
|
E
|
F | G | H |
|
IN 4150 FT
|
1” BSP/ BSPT/ NPT | 119 | 86.3 | 29.0 | 54 | 56 | 35 | 76.5 | 58.0 |
