Break aways - 1" Standard Non Reconnectable & Reconnectable Break away
Model No : Model No.: IN 4650 & 60 B & IN 4650 & 60 C
Technical Specification
| Type |
2 Way (NO) |
| Size |
1" NPT / BSP |
| Body material |
Aluminium |
| O Rings & Seals |
FPM (Fluoroelastomer) |
| Fluid media |
Petrol / Diesel |
| Approvals |
Atex |

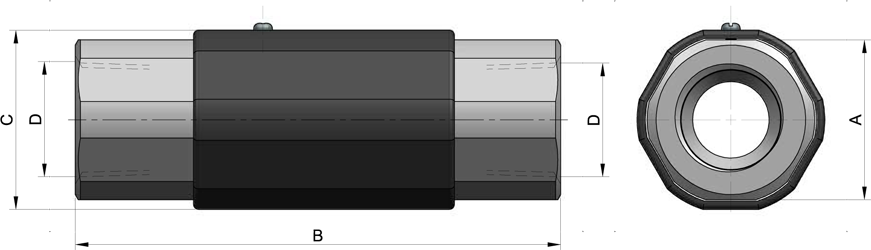

Dimension table
( Dimensions are in mm )
| Model No |
Port Size (Inch) |
Type |
A |
B |
C |
D
(Inch)
|
Weight |
Max. Separation
Pull Force |
| IN 4650 B |
3/4" NPT / BSP |
Non Reconnectable |
31.8 |
106.3 |
36.5 |
3/4" |
0.4 lbs |
350 LBS |
| IN 4650 C |
3/4" NPT / BSP |
Reconnectable |
41.5 |
108.9 |
47 |
3/4" |
0.8 lbs |
350 LBS |
| IN 4660 B |
1" NPT / BSP |
Non Reconnectable |
46 |
142.6 |
51.5 |
1" |
0.8 lbs |
350 LBS |
| IN 4660 C |
1" NPT / BSP |
Reconnectable |
46 |
141.5 |
51.5 |
1" |
1.0 lbs |
350 LBS |
