| Type | 2 way (NO) |
| Size | 3/4" NPT/M28 & 1" BSP/M34 |
| Body material | Aluminium Ad Blue (DEF) Coating |
| O rings & Seals | FPM (Fluoroelastomer) |
| Fluid media | Petrol / Diesel / Ad Blue |
| Approvals | Atex |
| Model No | Port Size (Inch) |

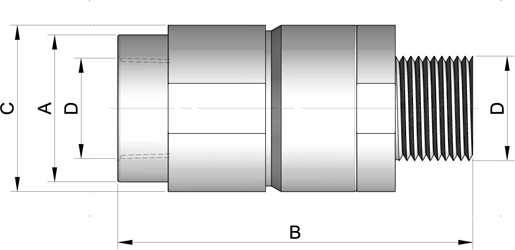

Type | A | B | C |
D Inch / mm) |
Weight | Max. Separation Pull Force |
| NOZ-IN 56095 (DEF) | 3/4" NPT | Safety Breakaway Coupling Pump | 38 | 89 | 44 | 3/4" | 0.335 lbs | 350 LBS |
| NOZ-IN 56015 (DEF) | M28 | Safety Breakaway Coupling Pump | 38 | 89 | 44 | M28 | 0.340 lbs | 350 LBS |
| NOZ-IN 56085 (DEF) | 1" BSP | Safety Breakaway Coupling Pump | 38 | 89 | 44 | 1" | 0.330 lbs | 350 LBS |
| NOZ-IN 56105 (DEF) | M34 | Safety Breakaway Coupling Pump | 38 | 89 | 44 | M34 | 0.350 lbs | 350 LBS |

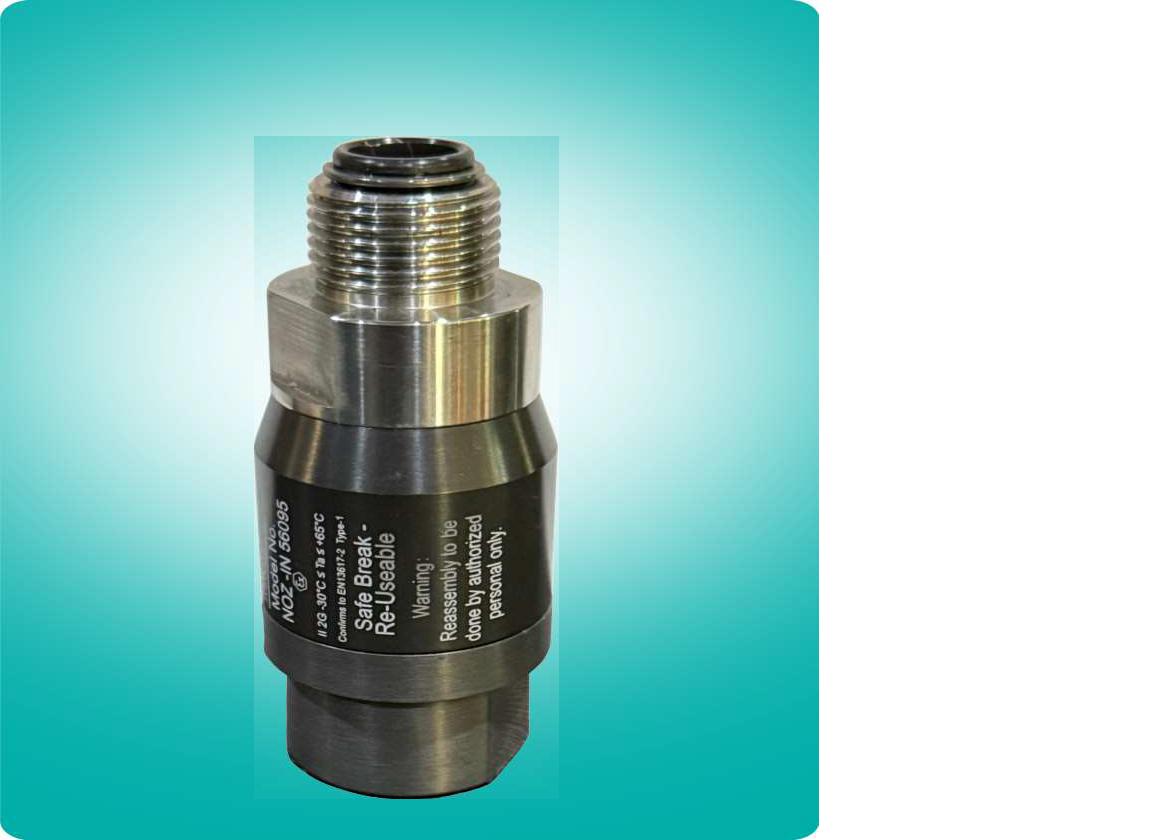

Infinity Safety Breakaway Cupling Nozzle Break Re-useable allows for immediate return to service after a drive away with no repair kit required.
This is made possible by a unique reconnectable design.The single poppets seal both hoses upon separation.
