2 way 2 stage solenoid valve for LPG
2 way 2 stage solenoid valve for LPG
Model No : IN3350F
TECHNICAL SPECIFICATION
| Type | 2 way - 2 stage solenoid valve (NC) |
| Port size | 3/4" & 1" BSP / NPT |
| Period | Continuous |
| Insulation class | F |
| Working fluid pressure | 0 bar to 25 bar (AC) 0 bar to 17 bar (DC) |
| Body Material | Brass |
| Diaphragm | PTFE |
| Orifice | 2.4 mm / 19 mm |
| Operating Voltage | 230V AC & 24V DC & 12V DC |
| Wattage | 9 W (230V AC ) & 7W (24V DC) & 5.2W (12V DC) |
| Fluid Media | LPG Gas/ Liquid |
| Ambient temp. | -40°C to + 65°C |
| Approvals | ATEX, IECEx, PESO |

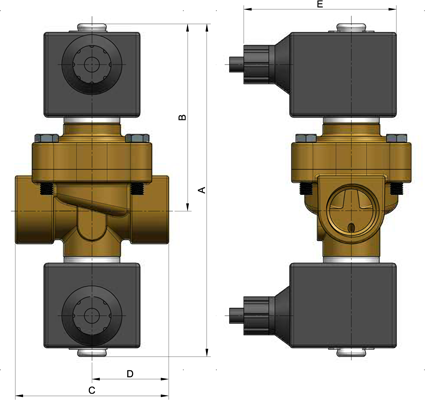

Dimension Table
(Dimensions are in mm)
| Model No | Port Size (Inch) | A | B | C | D | E |
| IN 3350 F | 3/4" BSP / NPT | 161 | 90 | 74 | 37 | 73.5 |
