Features
Safety Breakaway Cupling Pump Break Re-useable allows for immediate return to service after a drive away with no repair kit required.This is made possible by a unique reconnectable design. The double poppets seal both hoses upon separation.
- jayeshpatel@infinitycontrols.com
- 8:00 AM–7:00 PM, Thu-Tue; Closed Wed
Safety Breakaway Coupling Pump Break Re-usable
Safety Breakaway Coupling Pump Break Re-usable
Model No : 3/4" & M28 Standard & 1" & M34 Standard
Technical Specification
| Type | 2 way (NO) |
| Size | 3/4" NPT/M28 & 1" BSP/M34 |
| Body material | Aluminium |
| O rings & Seals | FPM (Fluoroelastomer) |
| Fluid media | Petrol / Diesel |
| Approvals | Atex |

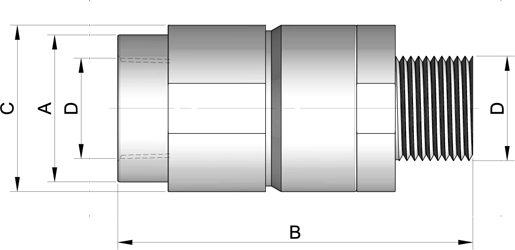

Table
| Model No | Port Size (Inch) |
Type | A | B | C |
D Inch / mm) |
Weight | Max. Separation Pull Force |
| PUMP-IN 56135 | 3/4" NPT | Safety Breakaway Coupling Pump | 38 | 99 | 43 | 3/4" | 0.335 lbs | 350 LBS |
| PUMP-IN 56155 | M28 | Safety Breakaway Coupling Pump | 38 | 78 | 43 | M28 | 0.340 lbs | 350 LBS |
| PUMP-IN 56125 | 1" BSP | Safety Breakaway Coupling Pump | 38 | 99 | 43 | 1" | 0.330 lbs | 350 LBS |
| PUMP-IN 56145 | M34 | Safety Breakaway Coupling Pump | 38 | 78 | 43 | M34 | 0.350 lbs | 350 LBS |
